R33 GTR GTS fuel line bracket set

$262.00

currently 7-10 day turnaround

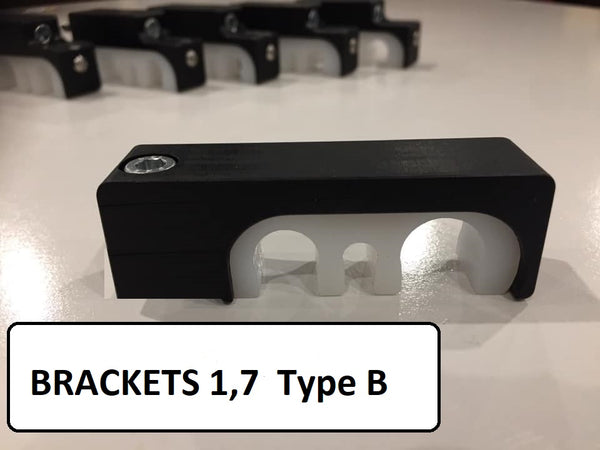

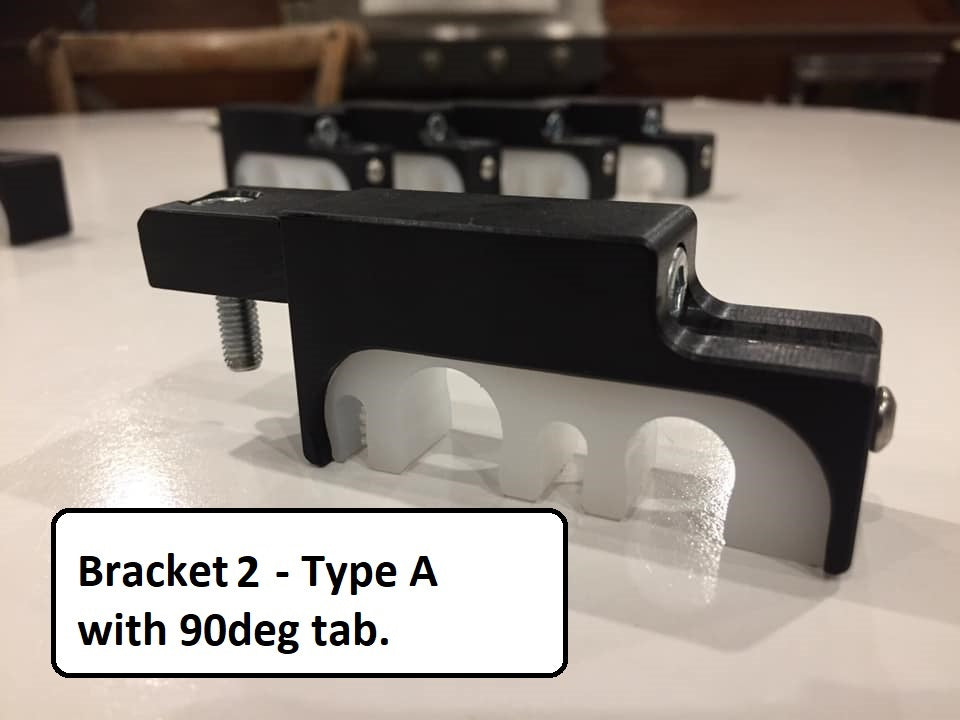

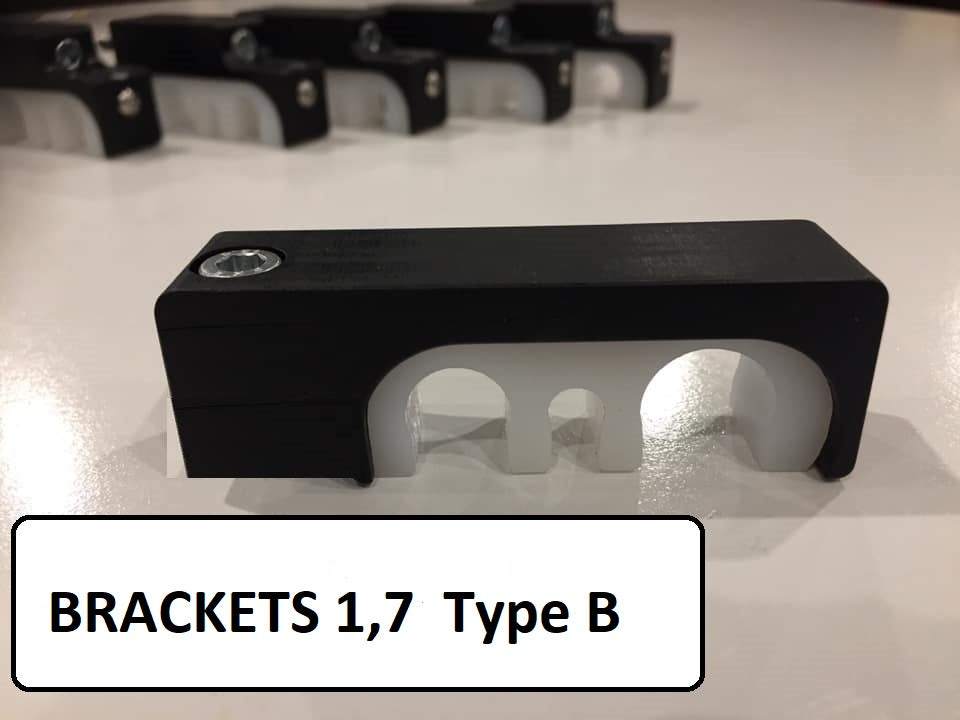

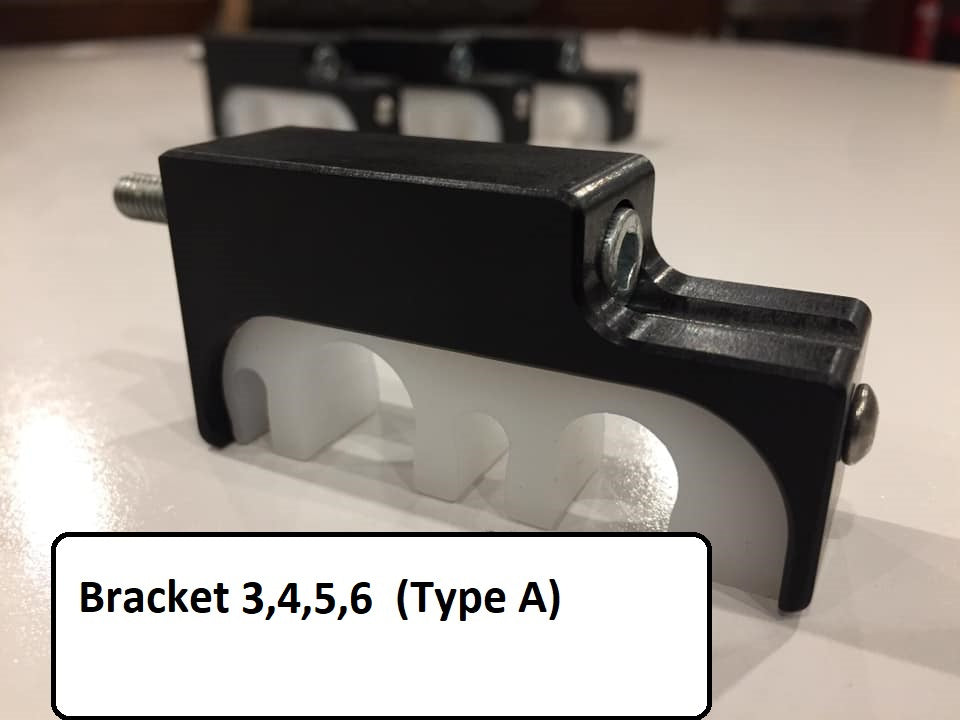

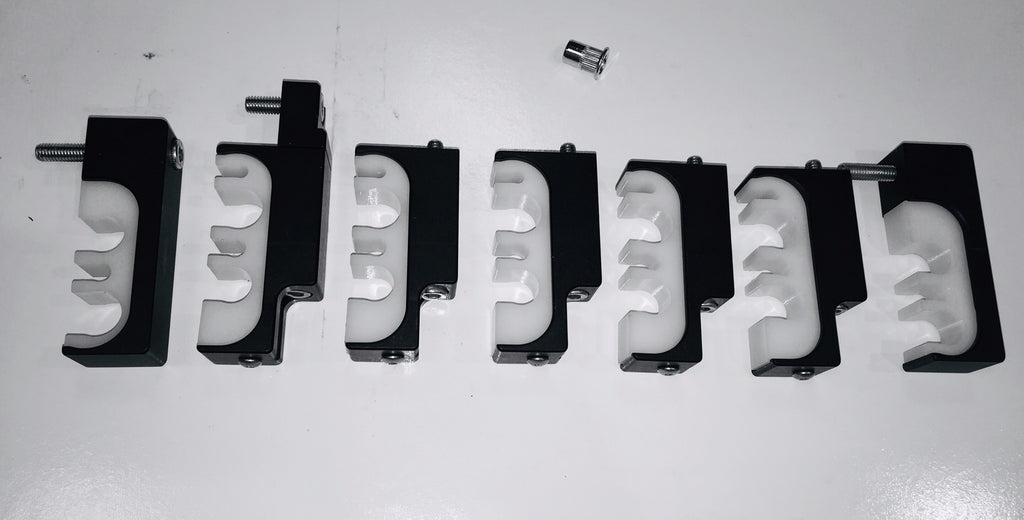

These brackets are direct bolt-on upgrades for the factory brackets. With the exception of one bracket all use factory mounting locations used, no drilling and no special tools required.

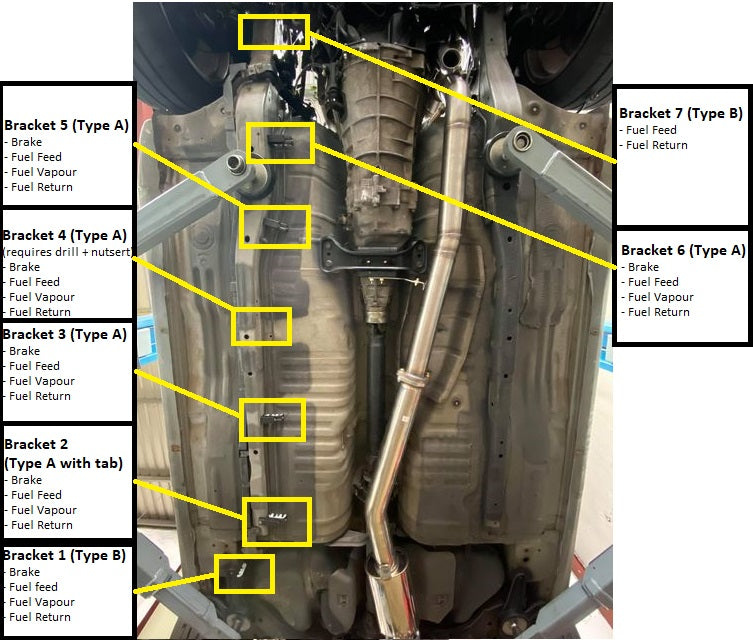

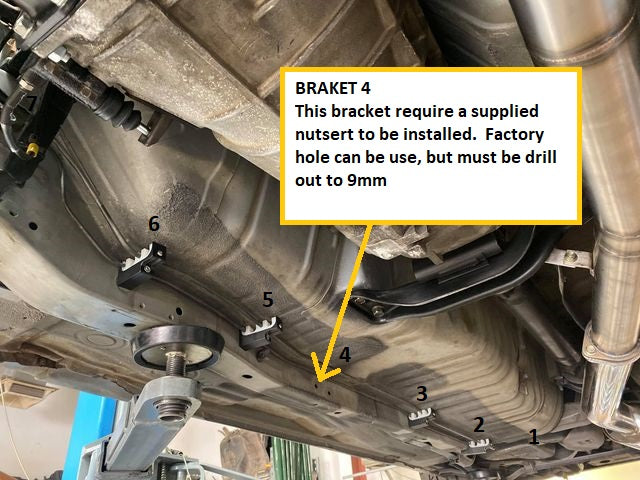

Bracket number 4 requires a single nutsert (supplied with kit) installed into the chassis rail. See pictures for bracket 4 location. These is an existing hole in rail for mounting, but no thread. Hole needs to be drilled out slightly to 9mm for nutsert fitment. From the factory there is only a plastic clip and not a proper bracket in this location.

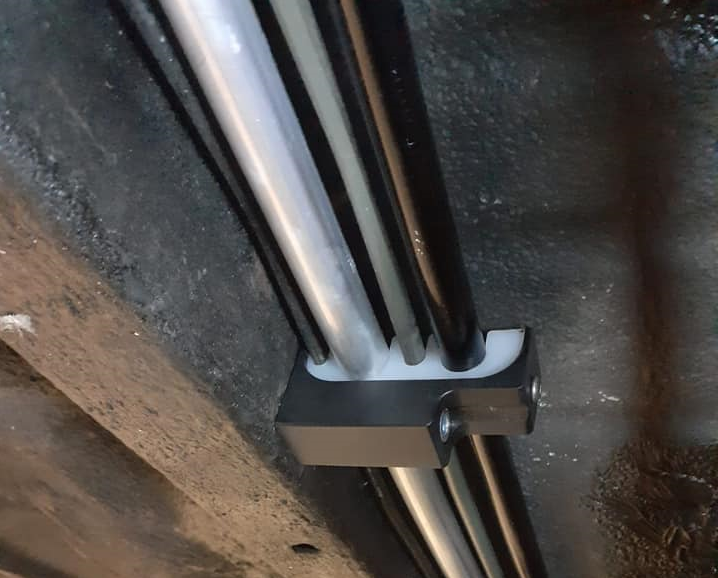

As with the factory brackets these accommodate the fuel lines, brake line, fuel vapour line that run under the car.

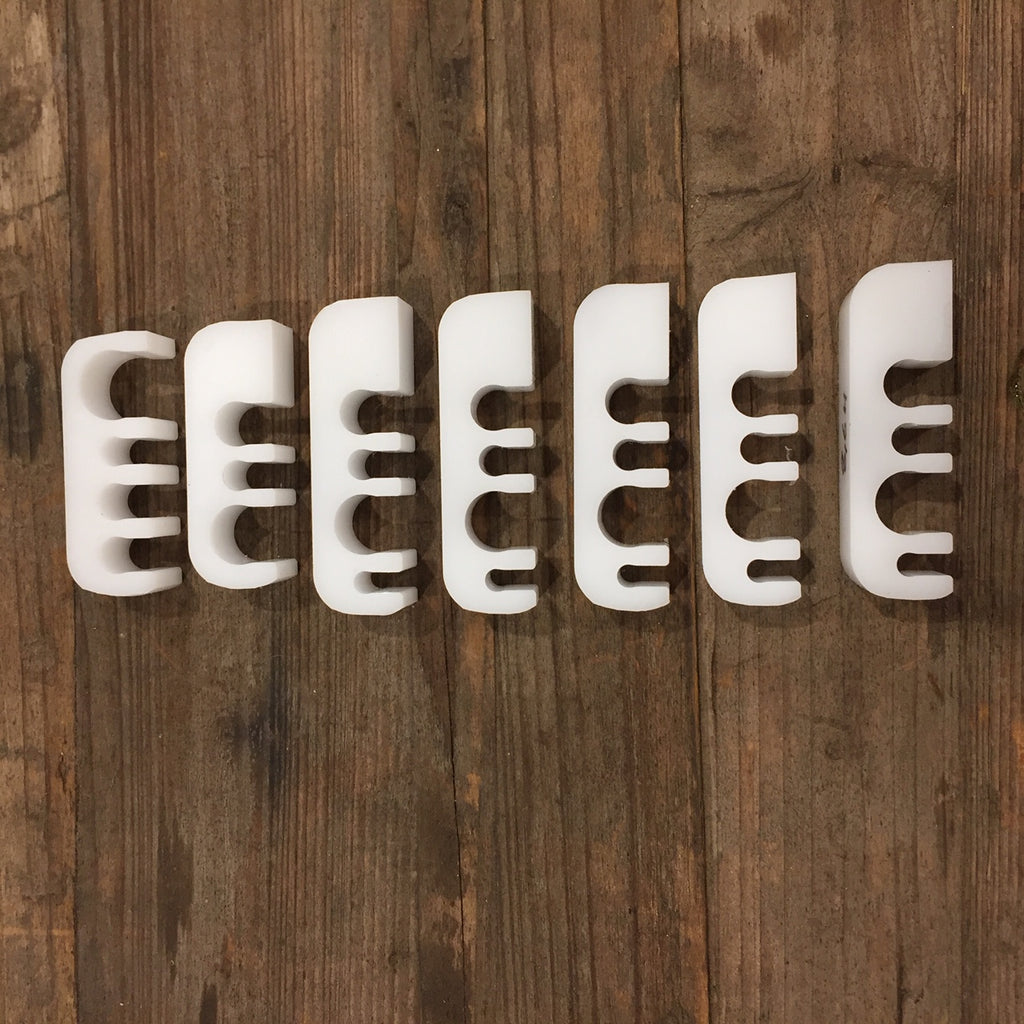

They include plastic inserts which will be custom made to suit most fuel line sizes. Also if you change your setup down the track, the plastic inserts are easily replaceable, and can be purchased separately.

Due to customisation, turn around time in generally within 1 week.

Please contact me before purchase to confirm your line requirements at

facebook messenger, https://www.facebook.com/

or sales@chrisoscustoms.com.au.
