R32 GTR Billet In-Tank Surge Tank

R32 GTR Billet In-Tank Surge tank.

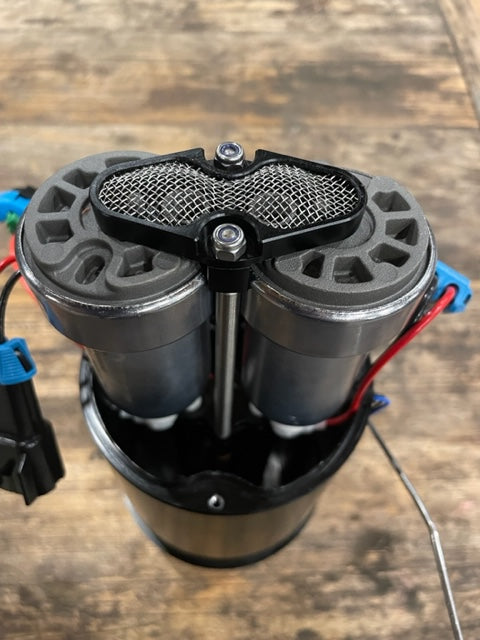

1300 HP capable. Can fit 3 x Walbro pumps, 1 x lift pump, 2 x feed pumps. Walbro 450, 460, 525 (pumps not included)

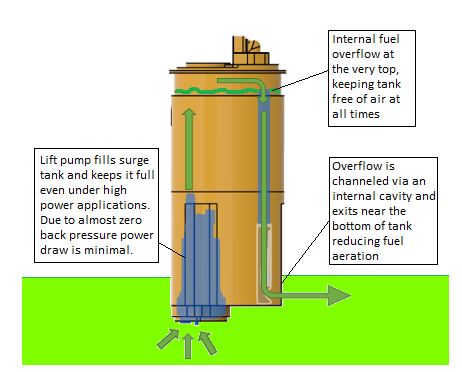

The benefits of a surge tank are well known, and are essential for avoiding fuel aeration in high g-force applications. The problem is surge tanks normally require an externally mounted unit in the boot or under the car, a lot of hose and fittings, taking up boot space and often the cause of fuel smells in the cabin.
This unit has all those benefits, however it is installed inside the fuel tank, without any modifications.

E85 safe - Viton O-Rings and Tefzel wiring.

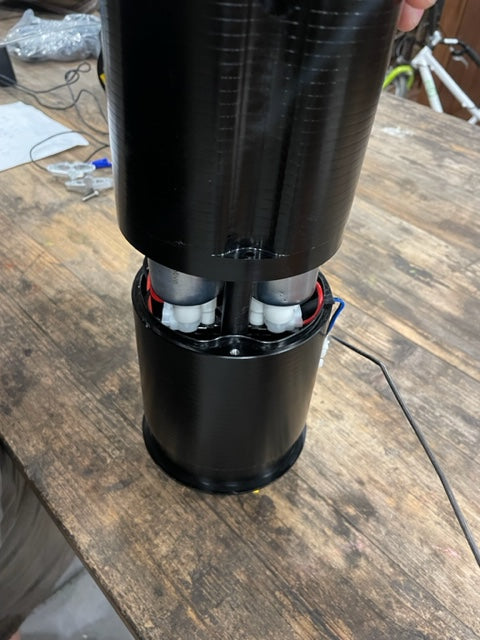

Easy install - units can be dropped into tank complete in only minutes. Assembly of pumps into the tank is designed to be as simple as possible  Unfortunately I can not supply the pump, but can perform the assembly for a small fee.

Quiet running - with the pumps enclosed in the tank, and submerged in fuel, they are very similar to factory pump volume.

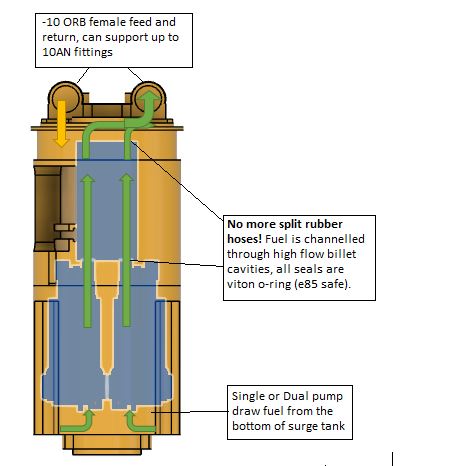

No more split hoses  - No chance of split hoses as there are none.  Connections to the pumps are done through a compression o-ring fitting.

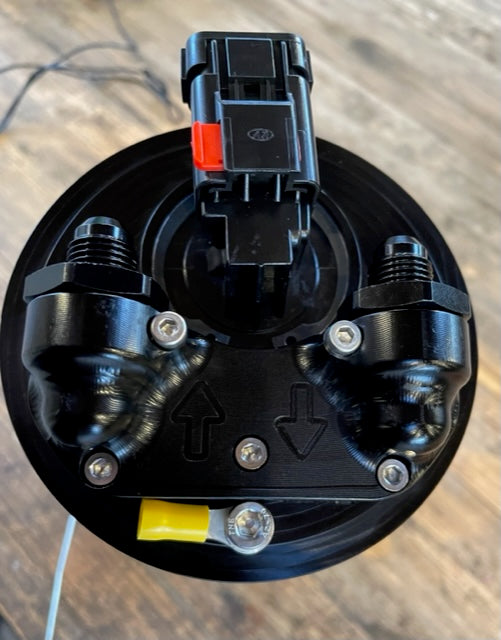

ORB 10 fittings - Can support up to 10an fittings for feed and return.

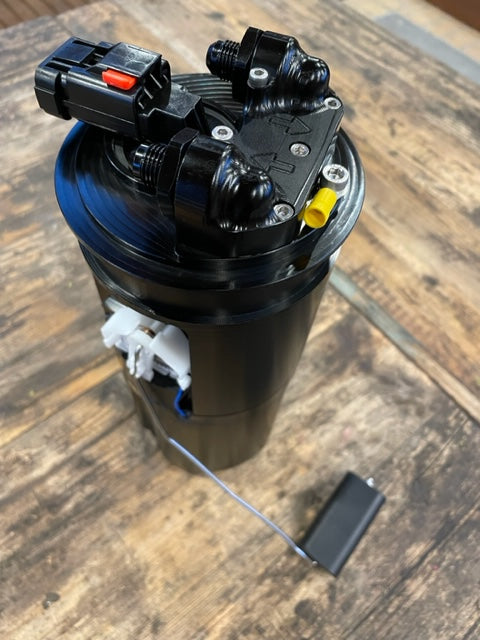

Single plug loom - One single bunk head plug + Earth for connection to 3 pumps and fuel level unit.

Fitting to tank:   https://youtu.be/kF5ipFJHfa0

Click for pump Installation Instructions
